Postman is a Google Chrome ReST Client extension

Use Postman to experiment with IxNetwork ReST APIs

This page will show you the followings using Postman:

• Install Postman on Chrome
• Connect to an available session ID
• Creating a new blank config
• Creating new vports and assign physical ports to the created vports
• Creating Topologies
• Viewing attributes on a given object
• Modifying an attribute
• Modifying an IP address using overlay

Install A REST API Browser Pluggin

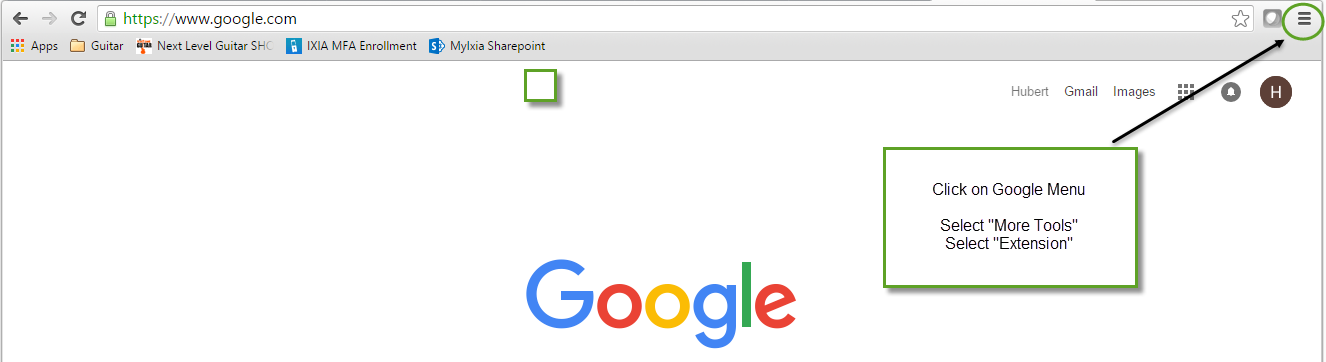

• Click on the menu button shown on the illustration below
• Select "More tools" and then select "Extensions"
• Scroll to the bottom and click on "Get more extenstions"
• Do a search for "postman rest api" and add it

How To Bring Up Postman

• Enter: chrome://apps
• Select Postman

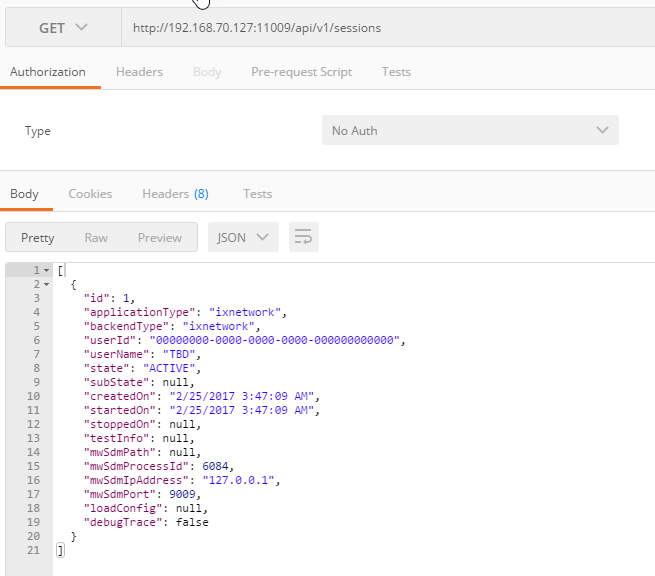

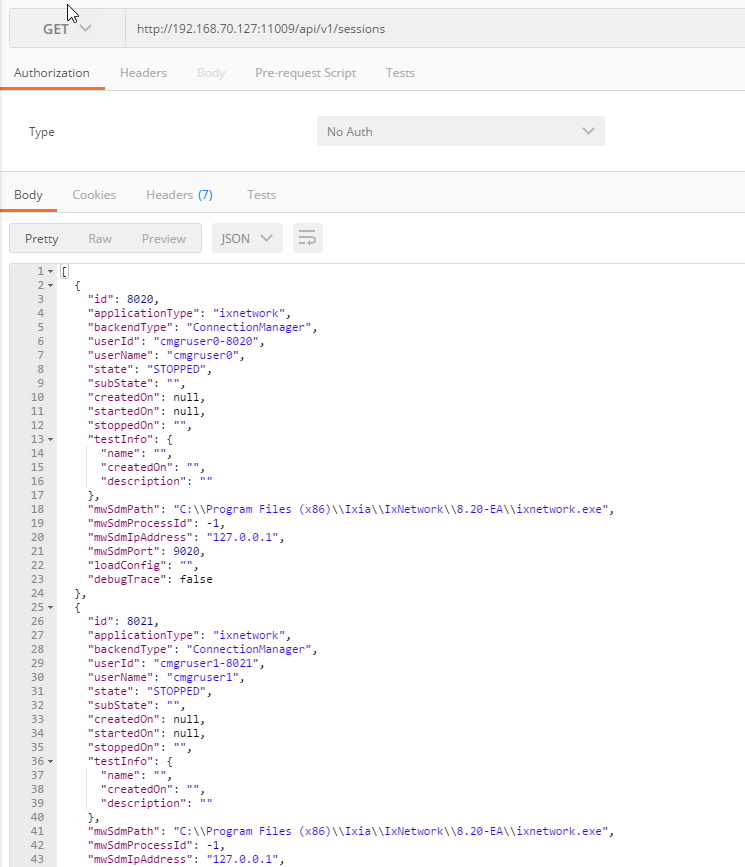

Connect to Windows API server And Get The Session ID

Python: response = requests.get('http://192.168.70.127:11009/api/v1/sessions)

Connect to Connection Mgr on a Windows Server 2012 and get the session ID

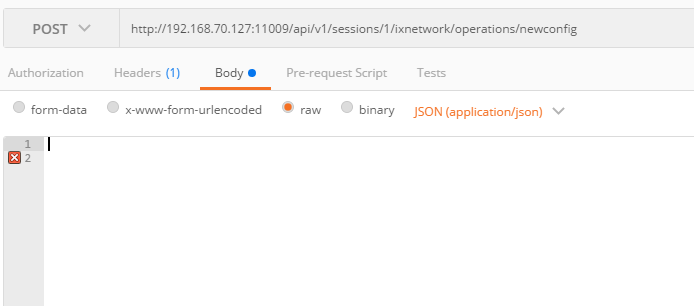

Create a blank config

Python: response = requests.post('http://192.168.70.127:11009/api/v1/sessions/1/ixnetwork/operations/newconfig', data={}, headers={'content-type': 'application/json'})

• The API server will return an ID for verifying
• id = response.json()['id']

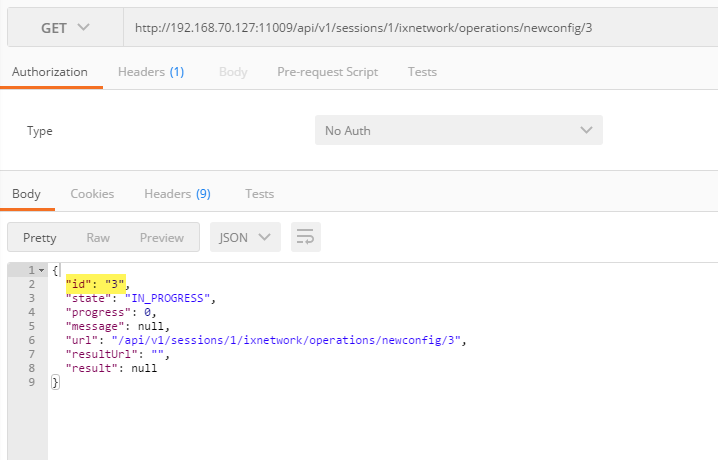

The ID is 3

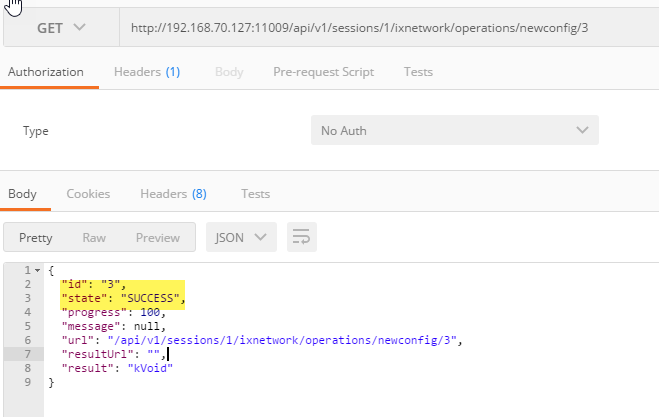

Keep doing a GET on ID 3 until the state is SUCCESS

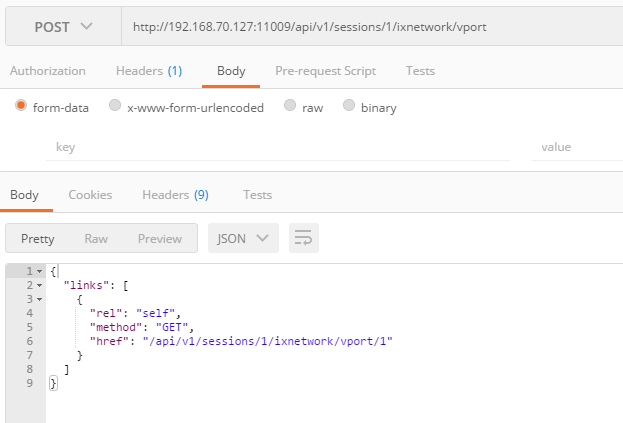

Create two VPorts

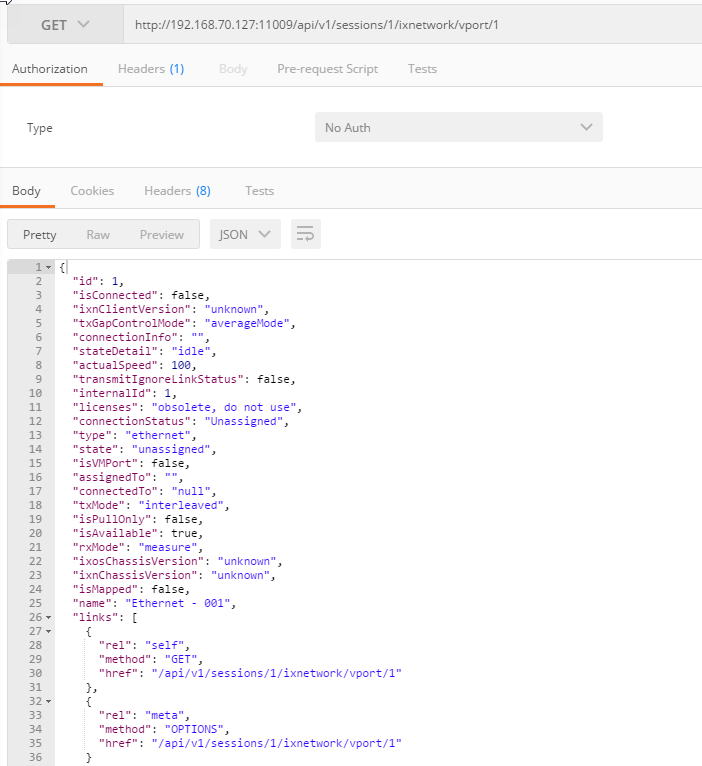

View the Vport's object attributes

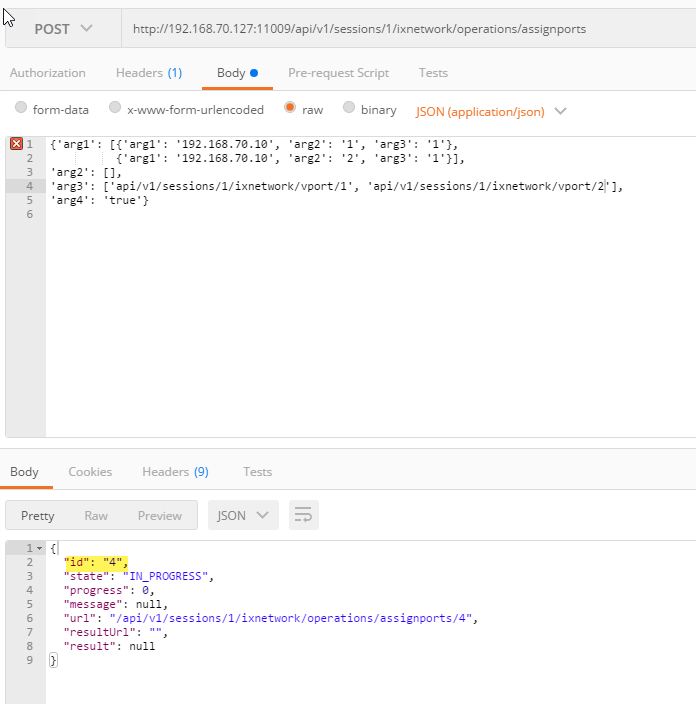

Assign ports

Get the returned ID to verify ports are up

• arg1 = chassisIp
• arg2 = card number
• arg3 = port number

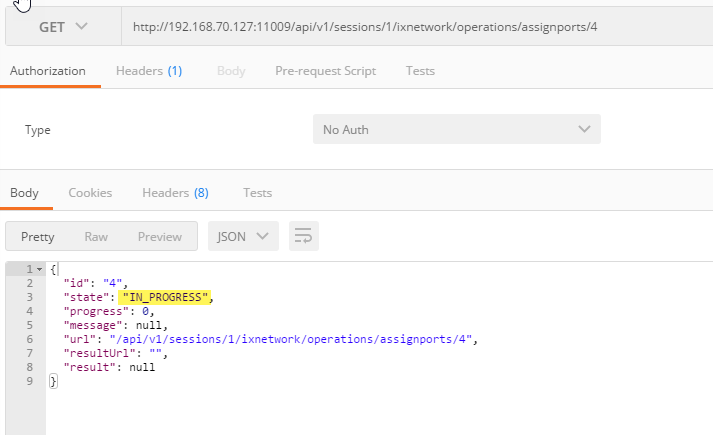

ID is 4

• The ports are now rebooting
• Wait until the state is SUCCESS

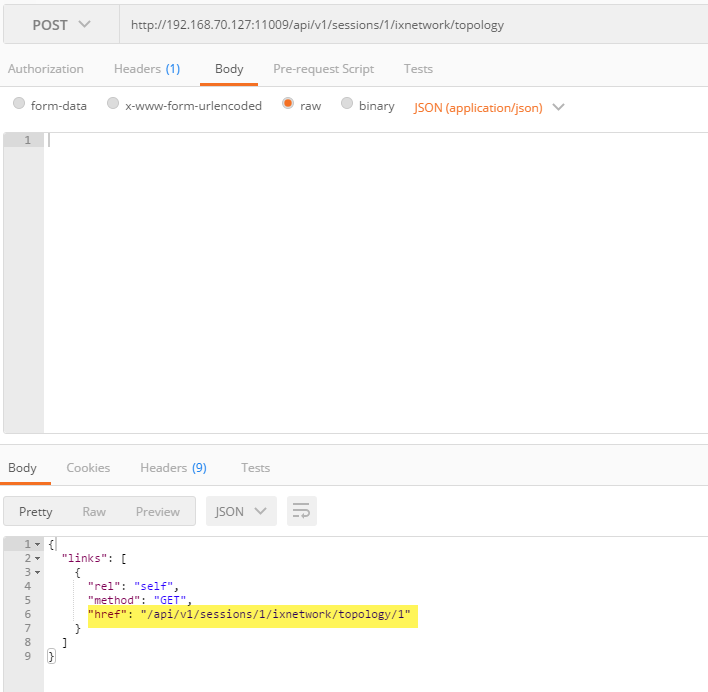

Create two Topologies

Get the returned Topology's object highlighted in yellow

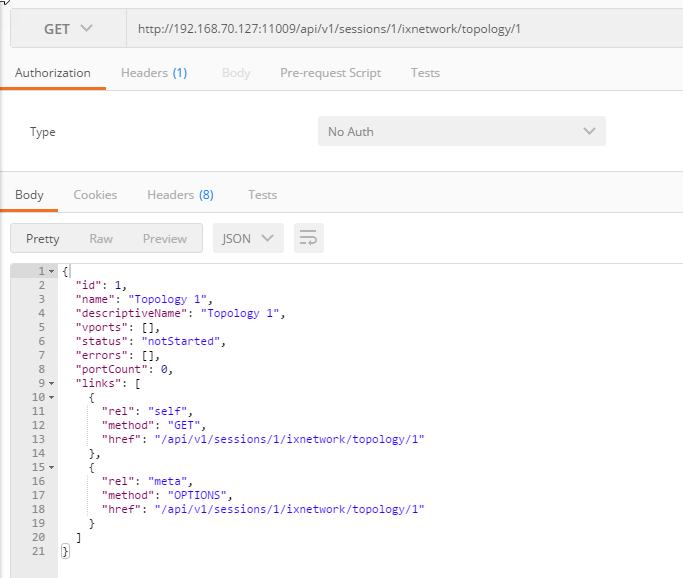

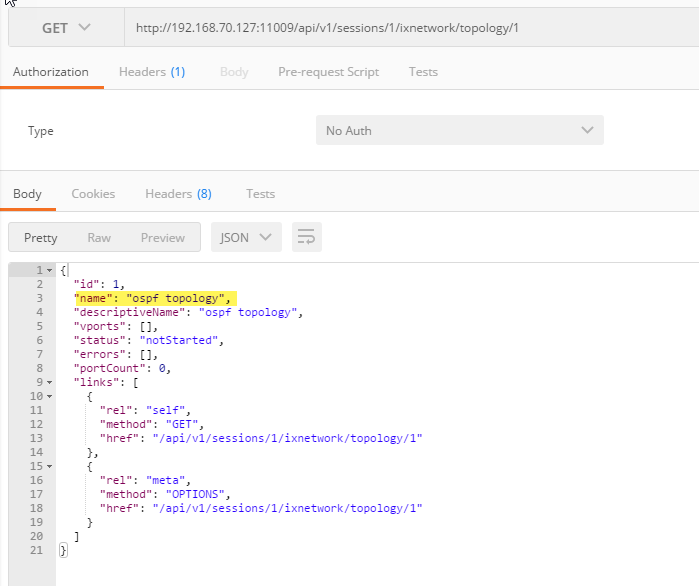

View a Topology's object attributes

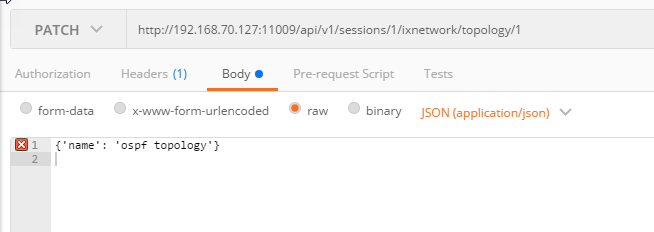

Modify the Topology's name

Verify the modification

Modify IP address

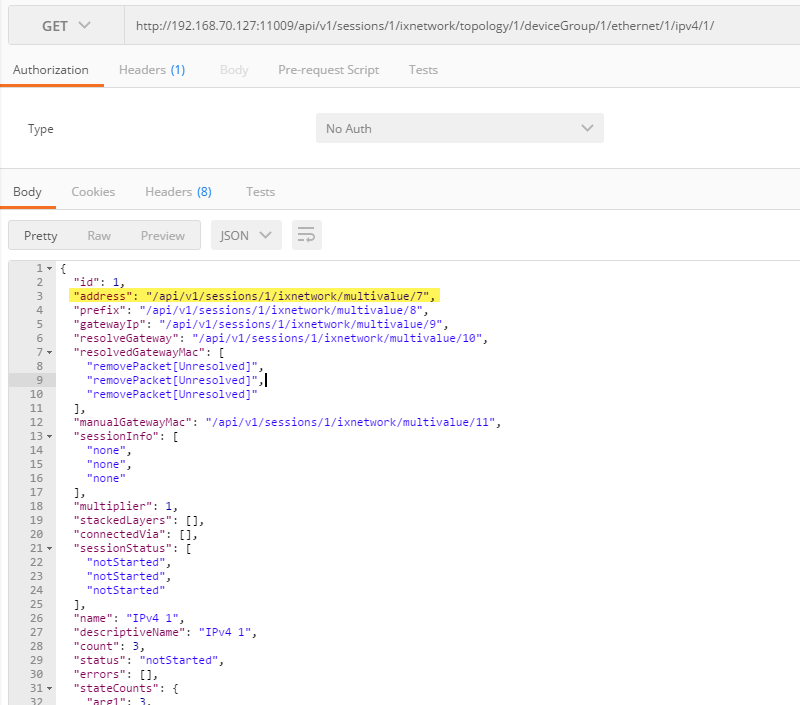

Get the address attribute's value

Look at the IP address list and get the index number order of the list

• 1 = 100.2.2.1
• 2 = 1.1.1.2
• 3 = 1.1.1.3

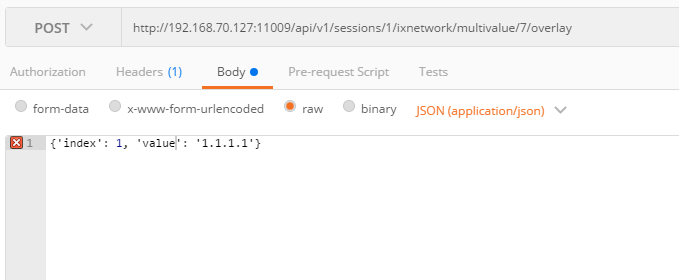

Using overlay to modify the IP address

Index 1 indicates the first IP address to modify along with the value

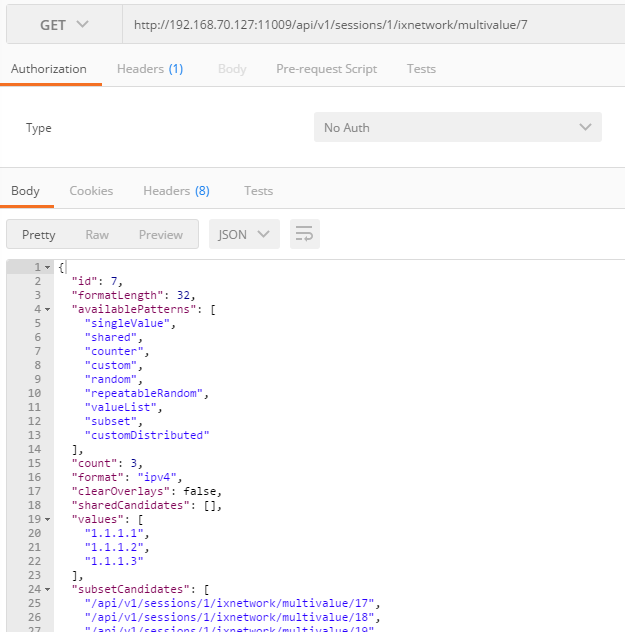

Verify the modification
